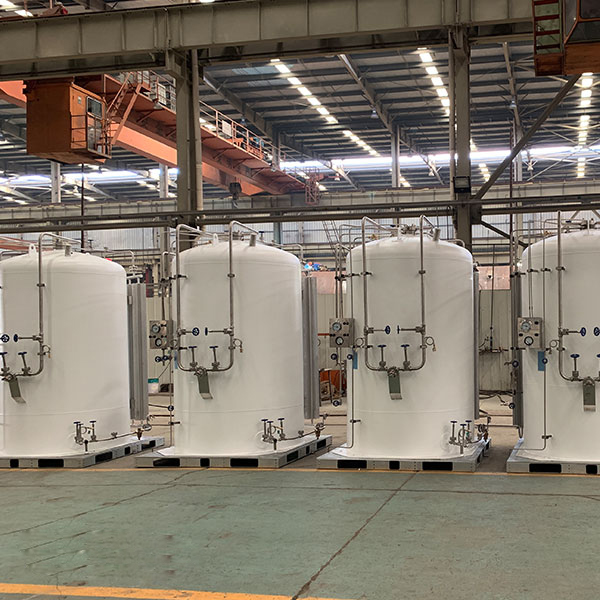

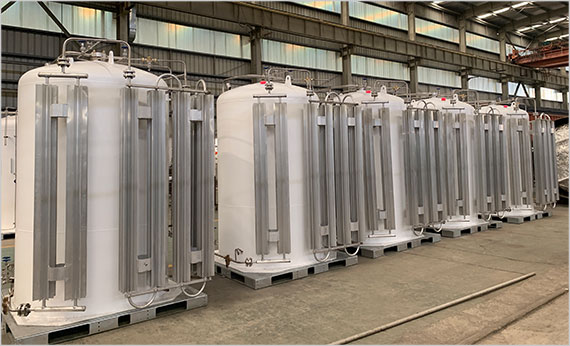

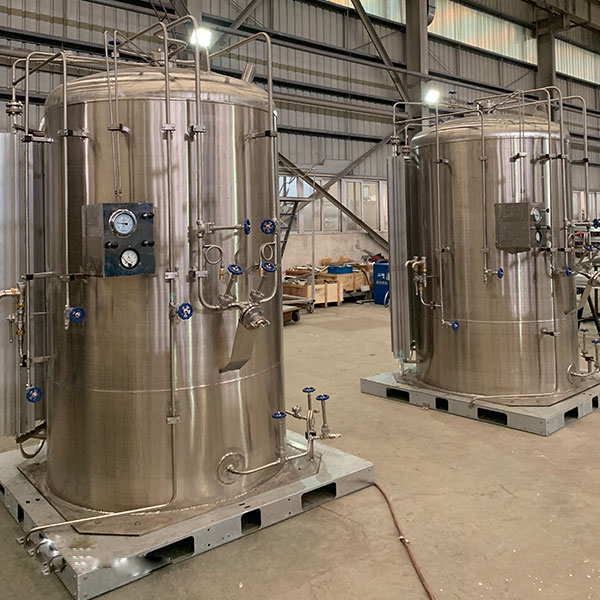

3M3 34bar Micro Bulk Tank
|
NAME |
PARAMETERS |
||
|
Model |
CFL-3/3.4 |
||
|
Total Volume |
3.18M3 |
||
|
Effective Volume |
3M3 |
||
|
Loading Medium |
LOX, LIN, LAr |
||
|
Design Code |
GB150 |
||
|
Valves and meters |
Safety Relief Valve, Level Indicator, Cryogenic valve, Pressure gauge , Vacuum probe, Rupture disc |
||
|
Main Material |
Inner Vessel |
S30408 |
|
|
Outer Vessel |
Q345R |
||
|
Working TEMP. |
≥-196℃ |
||
|
Working Pressure |
3.4 MPa |
||
|
Design Pressure |
3.5 MPa |
||
|
Test Pressure |
3.5 MPa |
||
|
static evaporation per day |
LIN≤0.6% LAr≤0.42% LO2≤0.4% |
||
|
Corrosion Allowance |
0 mm |
1 mm |
|
|
Welding Joint Coefficient |
Class A |
1.0 |
0.85 |
|
Class B |
1.0 |
0.85 |
|
|
Filling ratio |
0.95 |
||
|
Insulating Type |
High vacuum multilayer |
||
|
Total Net Weight |
2550KG |
||
|
Technical documents |
User Drawing, Product Quality Certificate, User’s Manual |
||
|
Dimension |
2000*2000*2937 mm |
||
