Liquid CO2 Mobile Tank

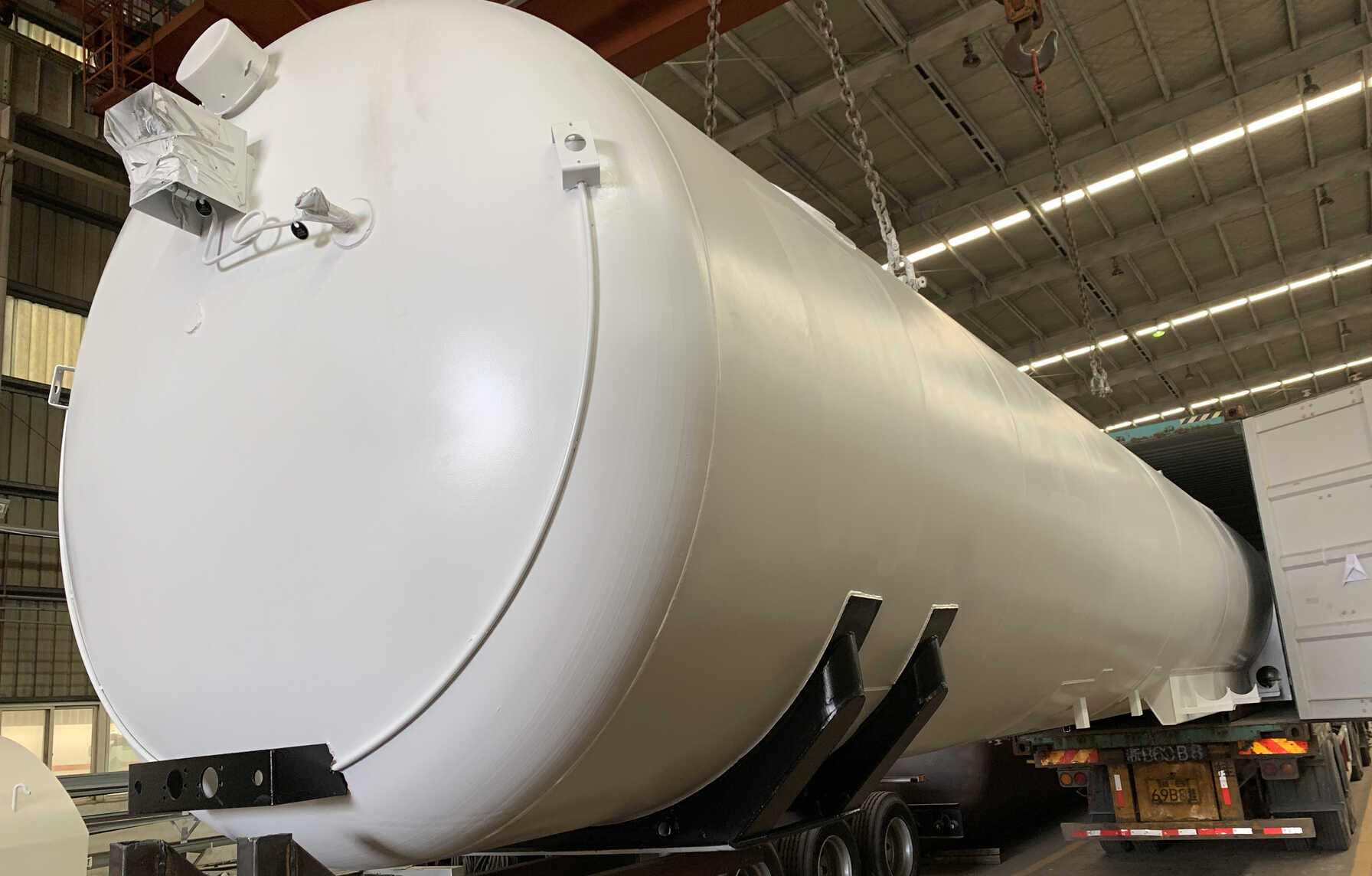

LCO2 Mobile tank consists of multi-layer super-isolation type and PU-insulation type.
A pump can be equipped in the operation cabinet for quick transfer of cryogenic liquid. High pressure tank (over 18 bar) has built in pressure building coil to vaporize gas and no pump is needed in this case. Therefore the investment is reduced as the mobile tank can be immediately operational.
Parameters:
Capacity: 3-40m3
Working pressure: 2-24 bar
Medium liquid: LCO2
Liquid carbon dioxide transport tank used for transportation of LCO2 from one place to other, which are equipped with safety fittings, unloading transfer pump, valves, gauges and other accessories as per Chinese GB standard of ASME norms.

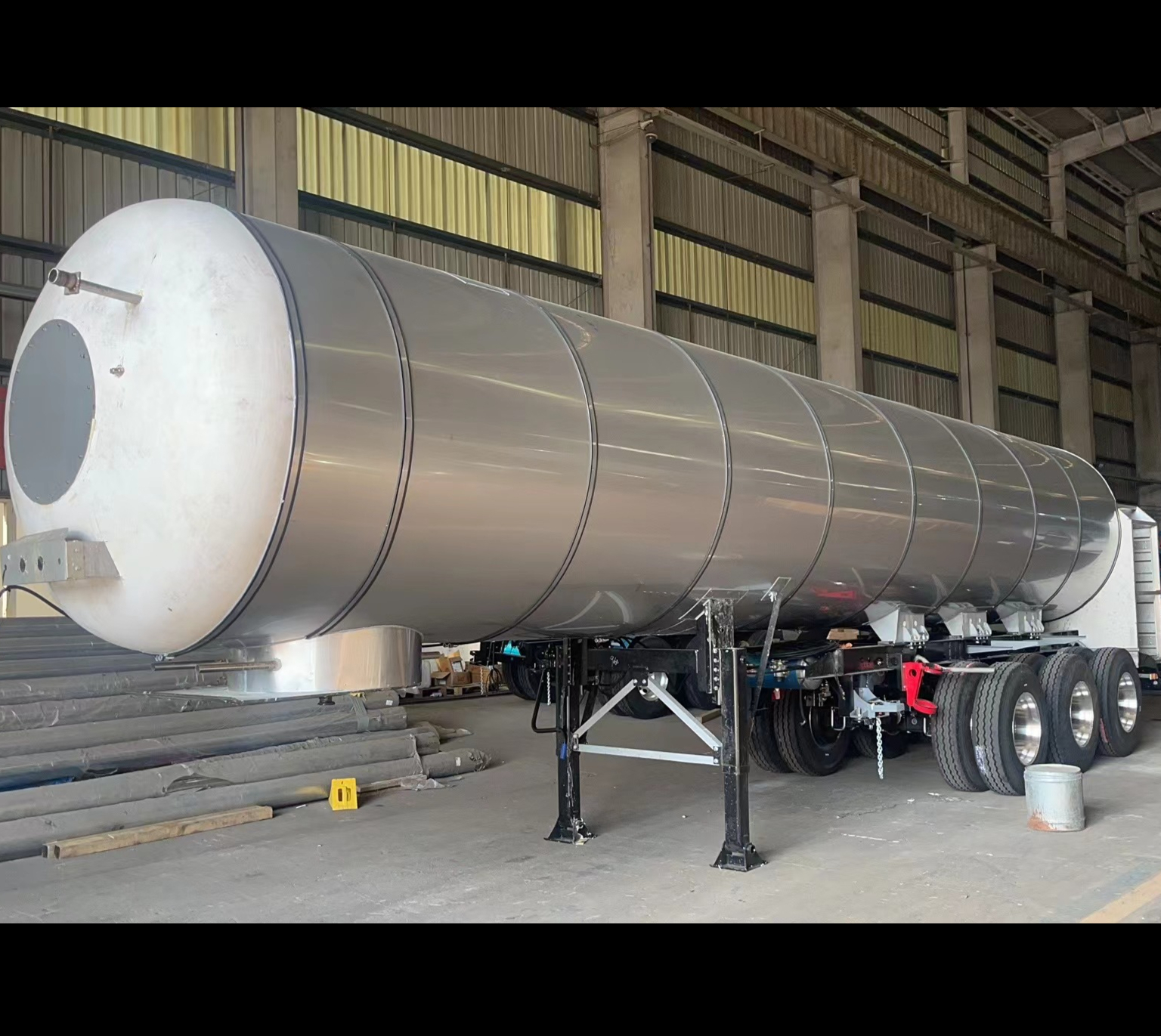

Liquid carbon dioxide is transported from CO2 recovery plants to customer’s storage tanks in different volumes through multi-layer super vacuum insulation or PU foam insulated transport tank. The tank is mounted and fixed on the semi trailer with dimensions to suit for particular vehicle model.
All the safety fittings, valves, liquid CO2 transfer pumps and other instruments are installed inside of a lockable back cabinet. Different capacity can be designed and fabricated according to the customer’s local transport regulation and selected vehicle model.
