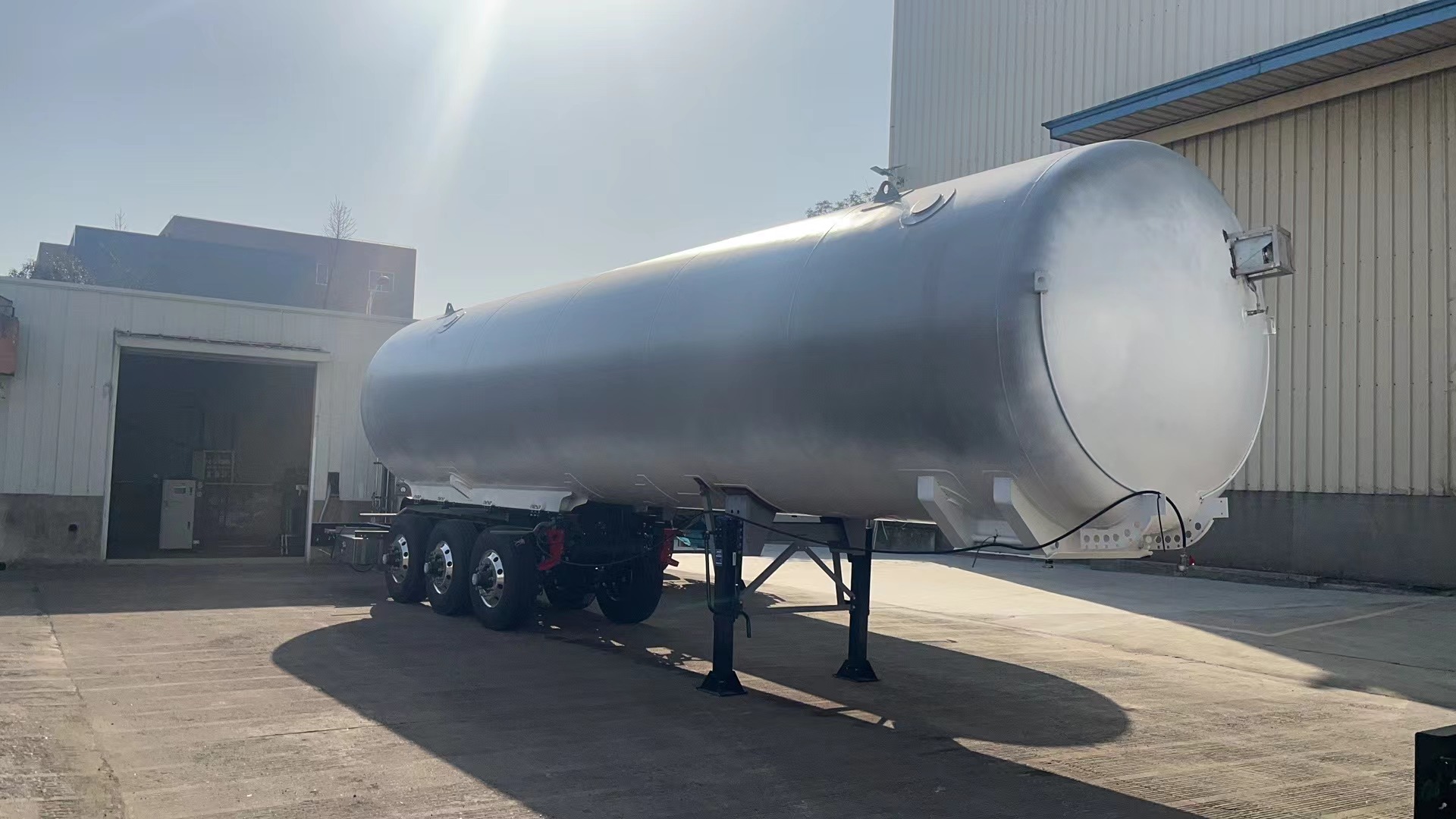

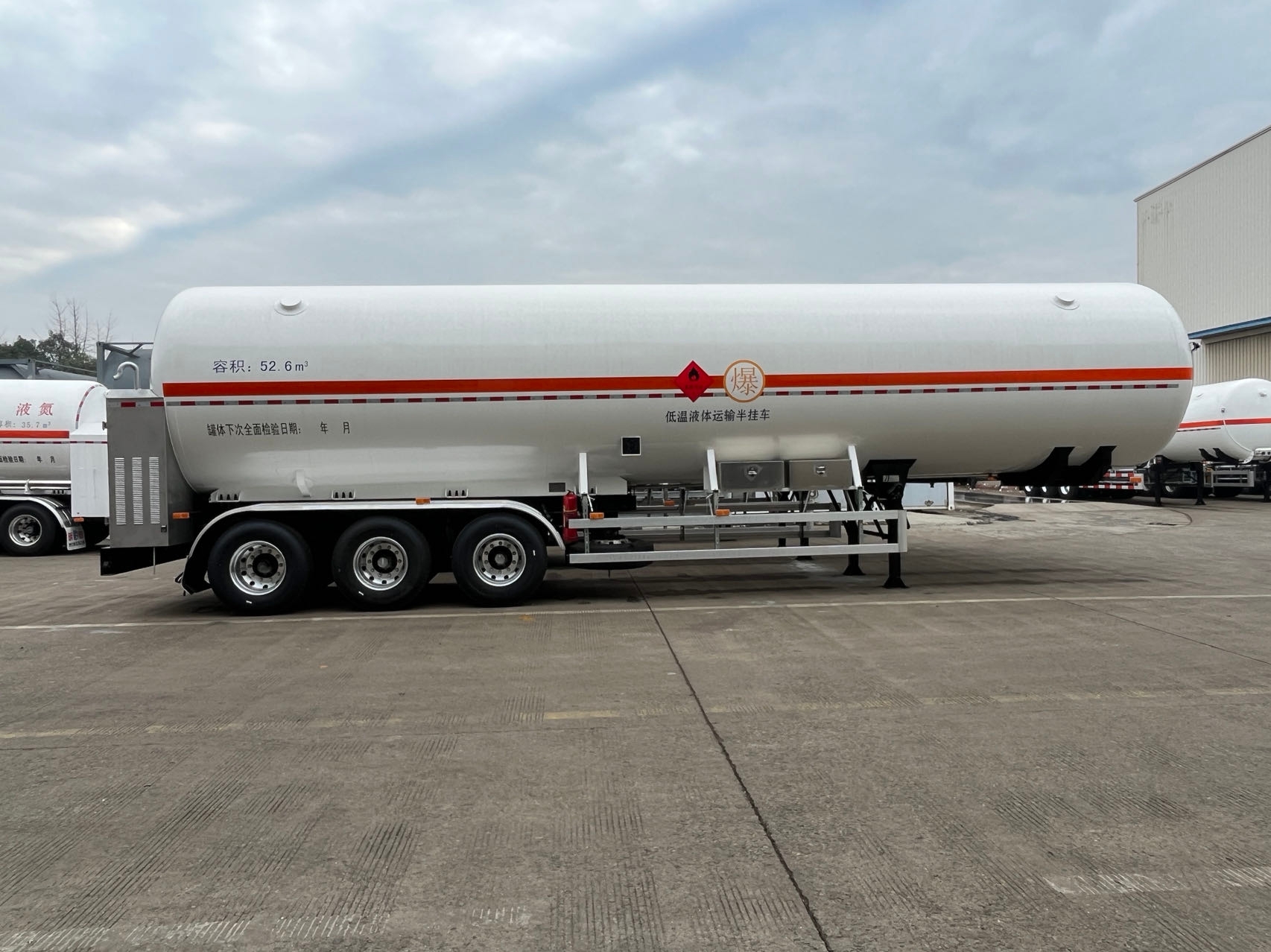

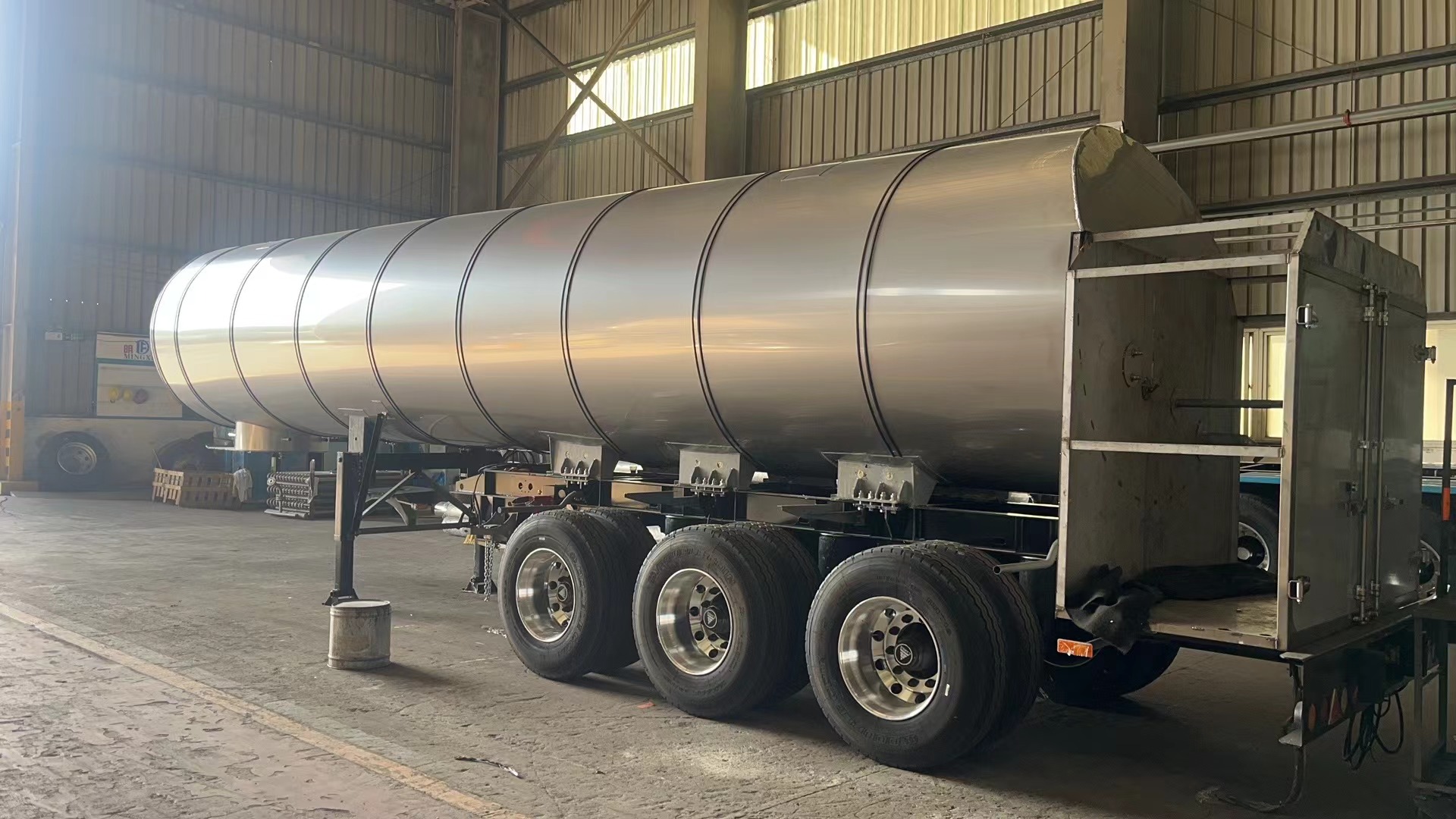

The cryogenic semi-trailer tanker mainly consists of horizontal storage tank, half trailer chassis, operation box, cryogenic liquid pump, automatic compressor, flow hose and connection pieces between the tank and chassis. It is a necessary gas carrier in cryogenic liquid transportation.
We have LO2 tanker, LN2 tanker, LAr tanker, LNG semi trailer tanker, etc. They are all characterized by high security, big storage capacity, flexible use and good heat insulation. They can be equipped with various accessories according to specific requirements.
Main technical parameters
1) Capacity: 20m³~55m³
2) Working pressure: 0.3MPa~1.6MPa
3) Design Temperature: -196ºC
4) Medium: LOX/LIN/LAR/LNG
List of Partial Models
Model |
Axle |
Medium |
Dimension (mm) |
Allowed weight (kg) |
Total weight (kg) |
Full load weight (kg) |
Capacity (m3) |
KQF5141GDYFEQ |
2 |
LO2 |
7850×2480×2950 |
4365 |
9100 |
13660 |
4.21 |
KQF9310GDYFTH |
2 |
LO2 |
11200×2480×3365 |
17100 |
13900 |
31000 |
16.17 |
KQF9400GDYFSD |
3 |
LO2 |
12230×2480×3750 |
24000 |
15890 |
39890 |
23.3 |
KQF9401GDYFSD |
3 |
LN2 |
12060×2500×3800 |
21600 |
18000 |
39600 |
28 |
KQF9320GDYFTH |
2 |
LN2 |
12700×2480×3482 |
19576 |
12100 |
31676 |
23.7 |
KQF9362GDYFSD |
3 |
LAr |
11750×2500×3600 |
22983 |
12950 |
35933 |
17.2 |
CF-20/16 |
-- |
LNG |
10500×2500×3720 |
9000 |
13500 |
22500 |
20 |
CF-46.4/7 |
-- |
LNG |
2500×3875×12990 |
20050 |
19950 |
40000 |
46.4 |
CF-12000/17 |
-- |
LPG |
1824×3300×7600 |
-- |
-- |
-- |
12 |
CF-18000/17 |
-- |
LPG |
2024×3500×7600 |
-- |
-- |
-- |
18 |
Purchasing Guide
If you would like to purchase our semi-trailer tanker, please let us know the following information, we will promptly provide you a quotation:
1. medium, volume, pressure
2. local road weight limits
3. do you have specific requirements for manufacturing standards? If not, the design and manufacture will comply with Chinese GB standards.
