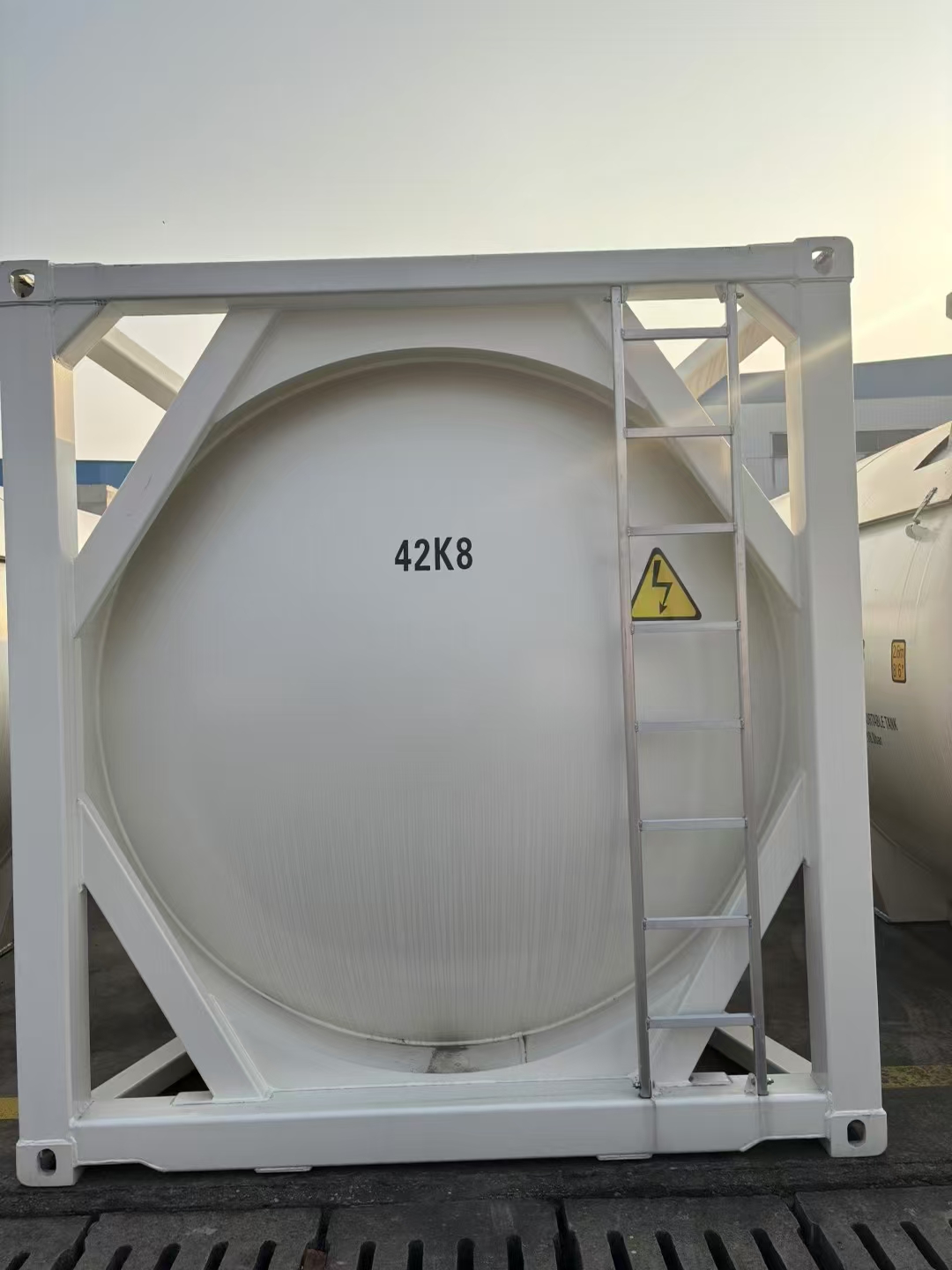

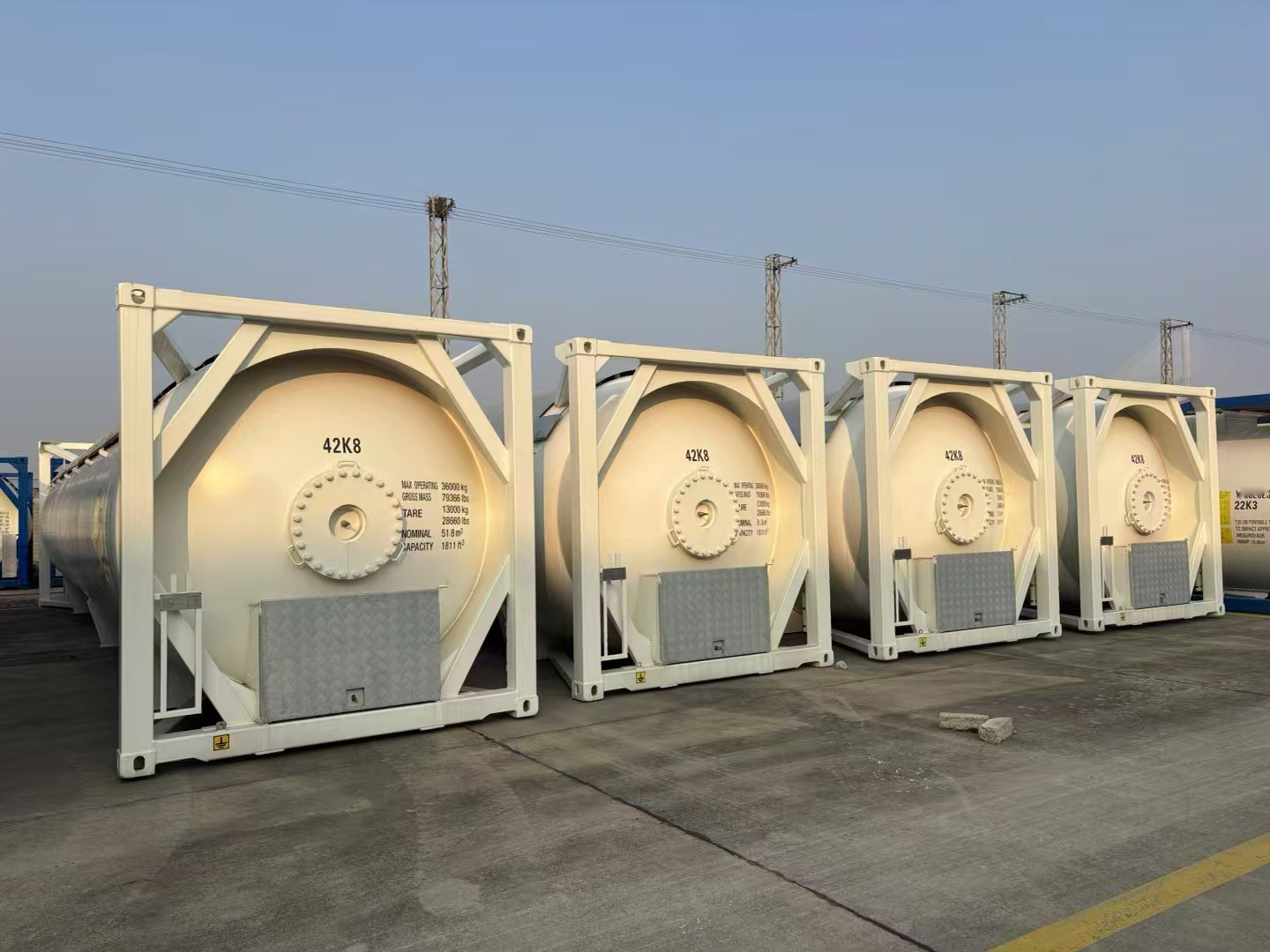

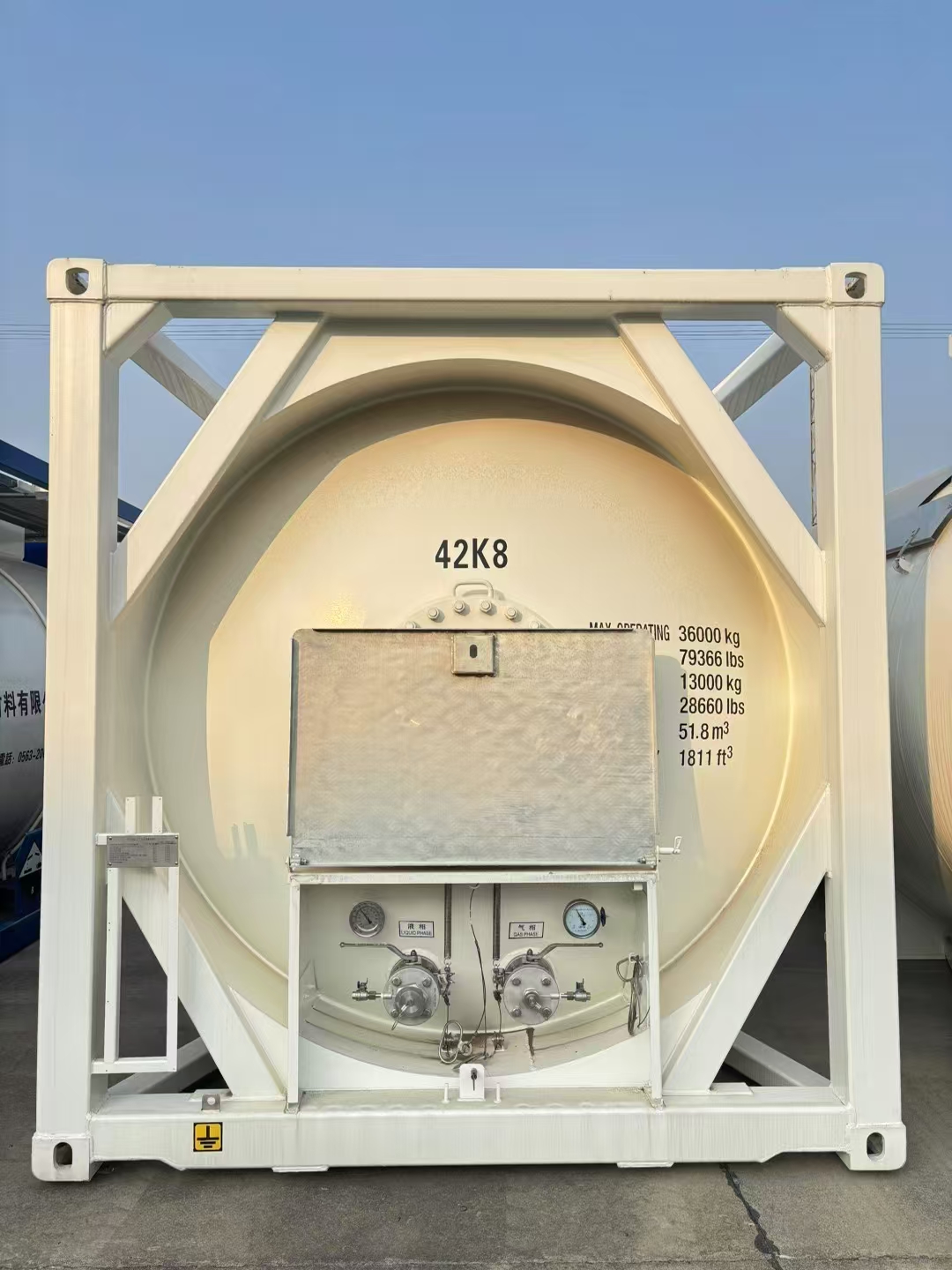

T50 ISO Tank Container
The T50 ISO tank is a specialized container designed for the safe and efficient transportation of liquefied gases under pressure.
ISO tanks are the safest, most efficient, economical and environmentally friendly way for the transportation of bulk liquids both hazardous and non-hazardous products.
Applications

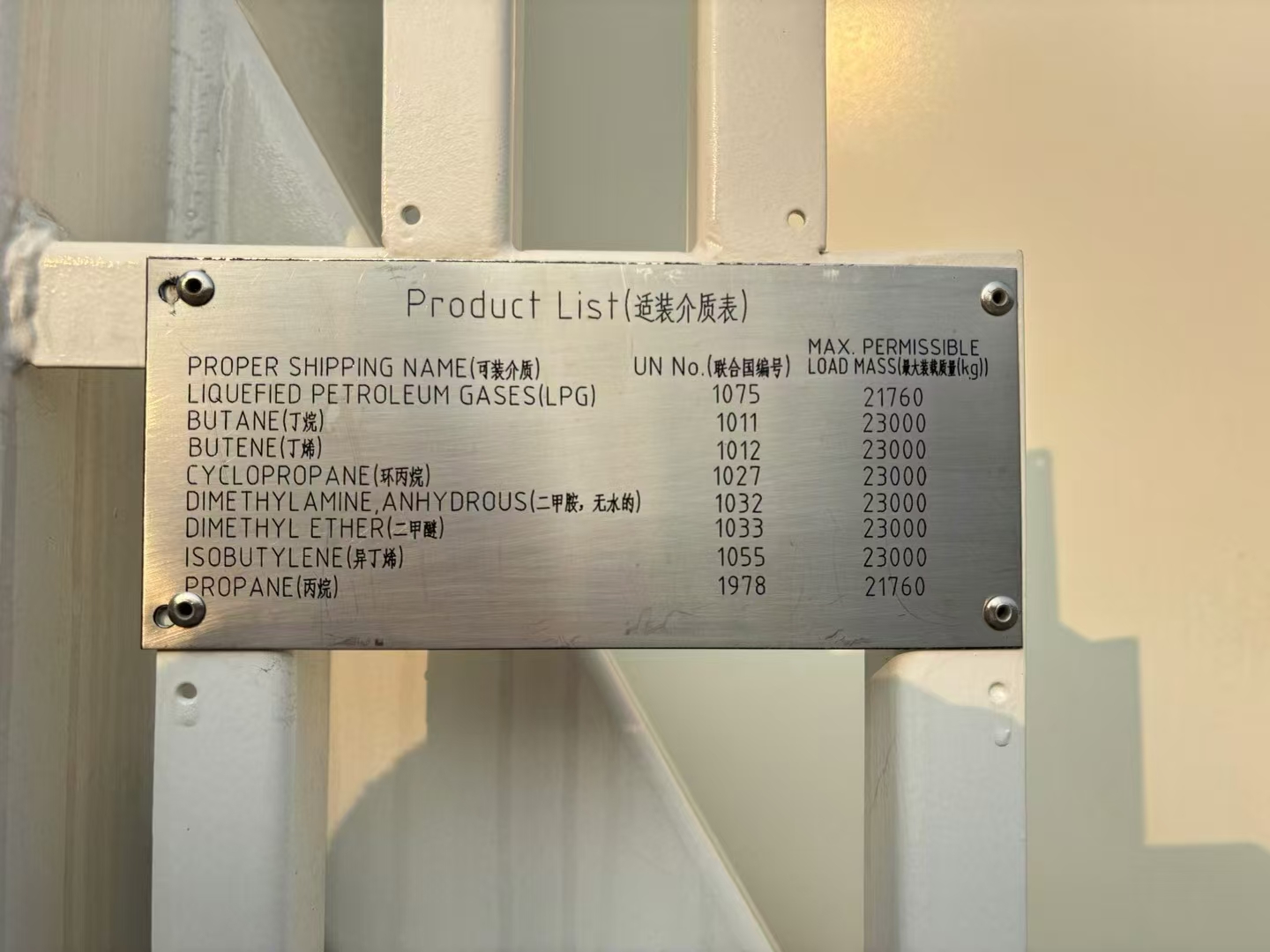

The T50 ISO tank is widely used for transporting liquefied gases such as:
- Liquefied Petroleum Gas (LPG)
- Propane
- Butane
- Propylene
- Butadiene
- Sulfur Dioxide
Technical Specification:
1.Tank Dimensions
Inside Diameter :2389 mm 94.06 in
Tan to Tan:4585 mm 180.51 in
Shell Nominal Thickness: 18.2mm 0.72in
Head Minimum Thickness A/F:16.3 mm 0.64 in
Corrosion Allowance: 0mm 0in
Elliptical Heads – 2:1SEApproximate Crown Radius: 2150.1mm
Approximate Knuckle Radius:406.13mm
ISO tank container is equipped with:
Protective and roof Footbridges
Waves breakers
Manhole

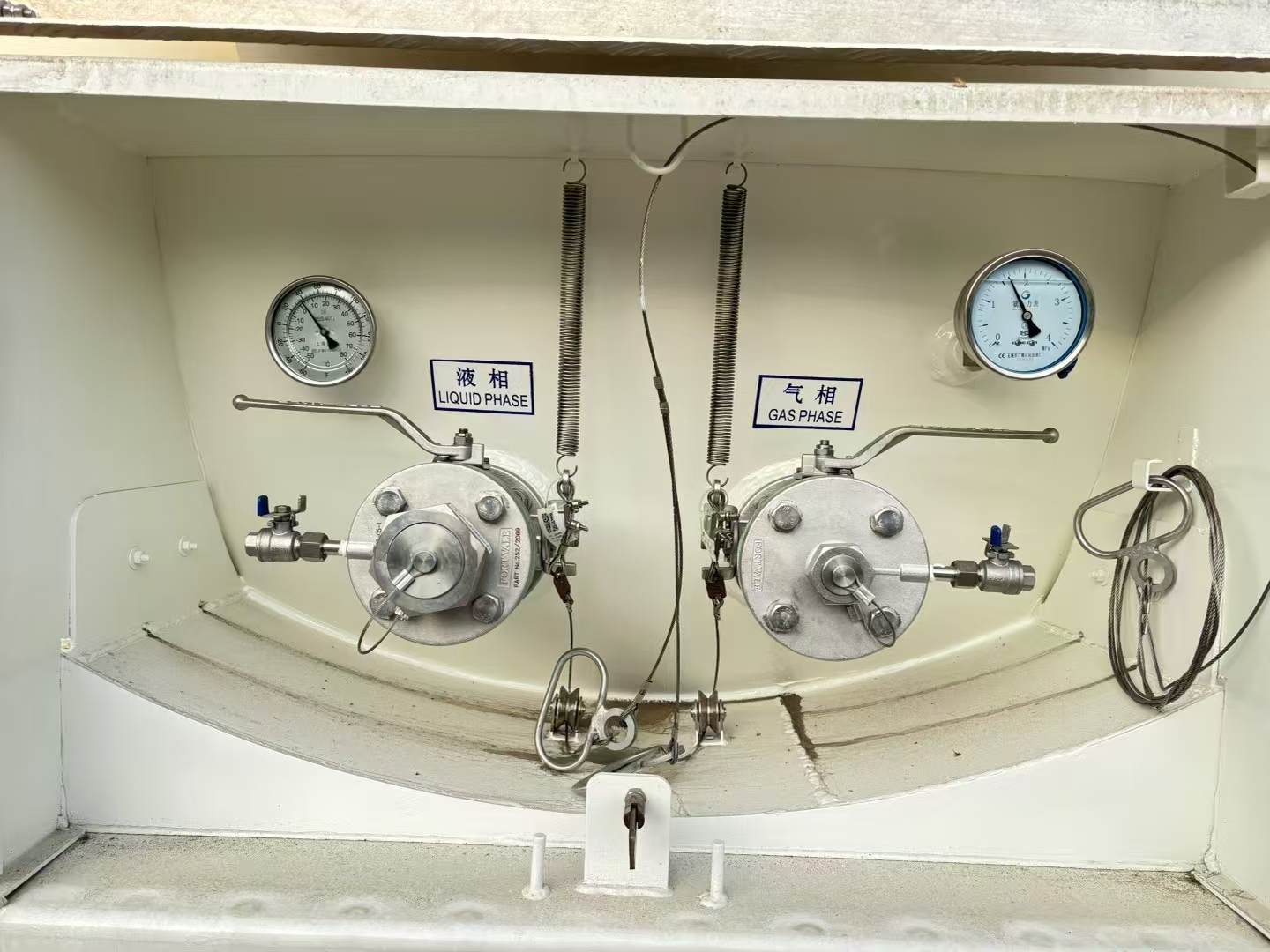

Safety Relief Valve Assembly
Gas line
Liquid Line
Pressure Gauge
Termometer
Sunshiled
Earth Connection
Document Holder
